**Pre-Orders are generally fulfilled within 2-3 weeks of order. After order has been placed we will contact you with a more precise ETA**

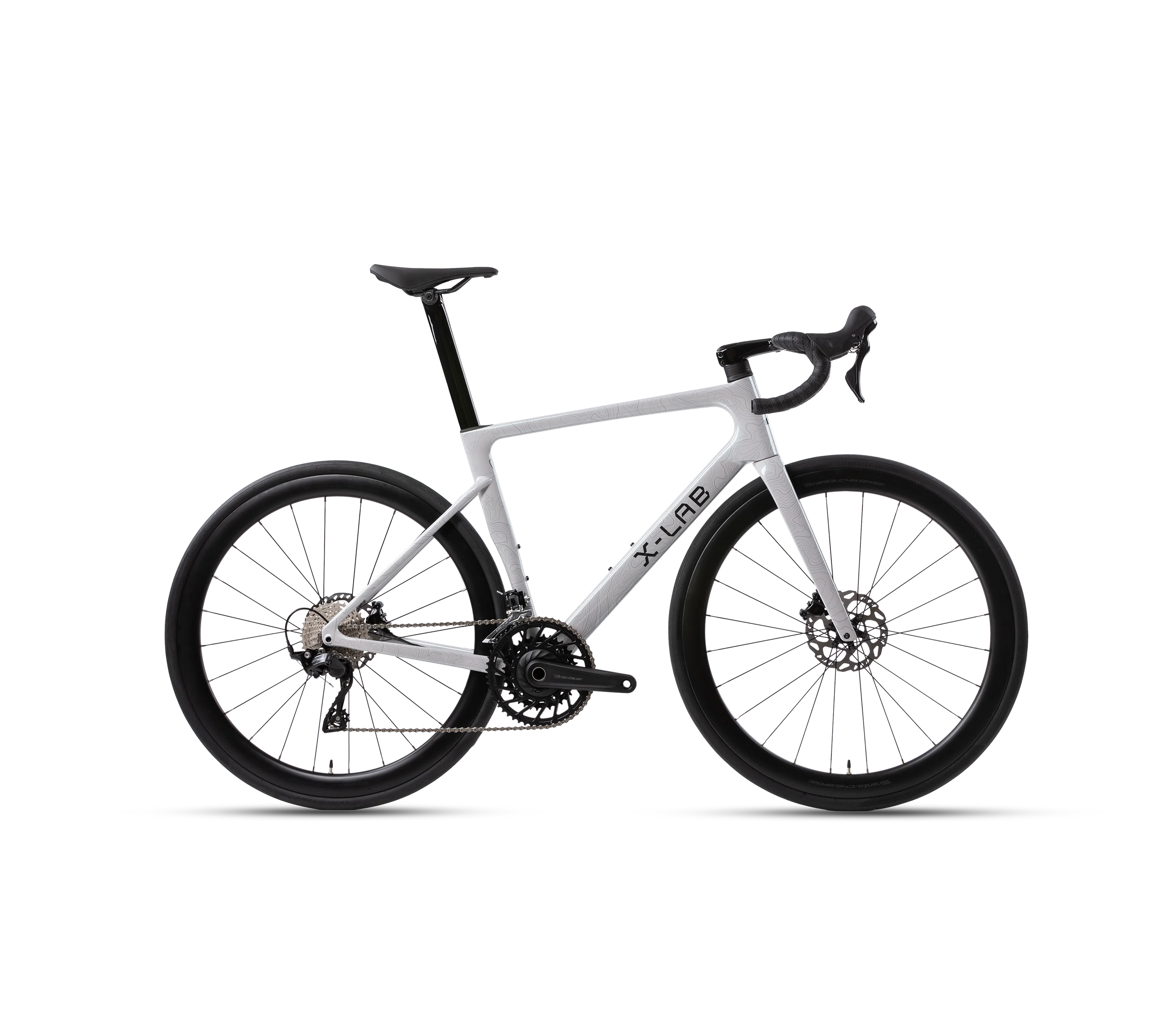

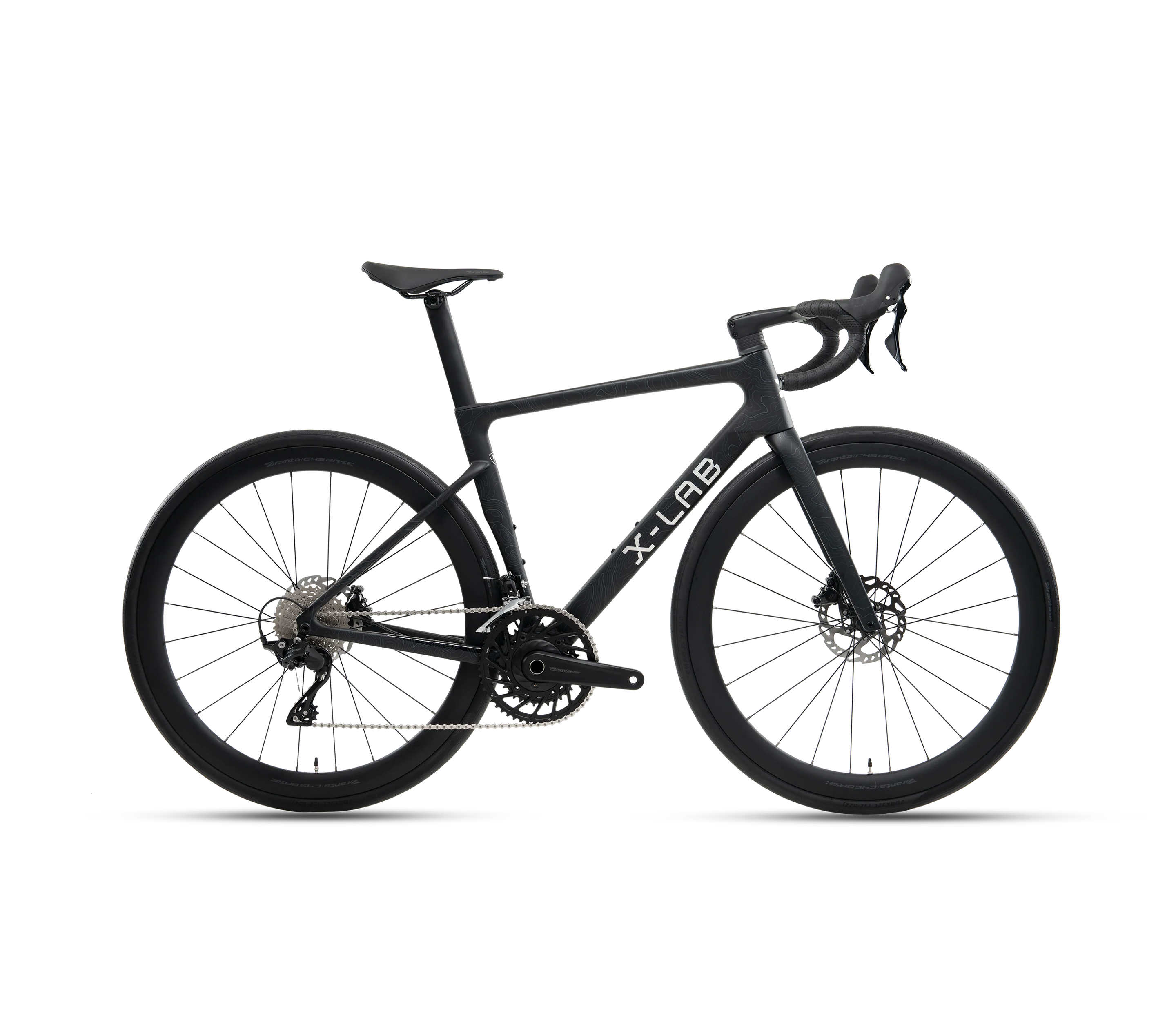

The RS7 blends aerodynamic efficiency with everyday rideability.
Its performance-oriented geometry and refined carbon construction deliver speed when you push, while maintaining the comfort and stability needed for longer rides.
Equally at home on weekend training routes or daily commutes, the RS7 offers a balanced performance platform that riders return to again and again.
For specific spec, geometry, and general information, please visit the RS7 product page here: https://xds.co/products/RS7/
Geometry
XS
S
M
L
XL
XXL
Stack
526mm
535mm
546mm
561mm
574mm
602mm
Reach
360mm
370mm
380mm
390mm
400mm
412mm
Top Tube
500mm
515mm
531mm
550mm
570mm
590mm
Seat Tube
420mm
440mm
470mm
490mm
510mm
530mm
Head Tube
130mm
135mm
145mm
160mm
175mm
200mm
Head Angle
70°
72°
73°
73°
73°
74°
Seat Angle
75°
75°
75°
74°
74°
74°
Chainstay
410mm
410mm
410mm
410mm
410mm
410mm
Wheelbase
973mm
976mm
982mm
993mm
1006mm
1016mm
Standover
737mm
752mm
772mm
789mm
807mm
830mm
Key specs
Frame: XDS Carbon, Toray T800
Weight: 8.49 kg / 18.67 lbs (size L)
Max tire clearance: 32C
Weight limit: 242 lbs (110 kg) rider + gear
Compatible with most wired, wireless, or mechanical groupsets
Lifetime frame & wheel warranty
Every X-LAB ships from Free Lap Collective in Reno, Nevada — sized to you, professionally built, and safety-checked by our mechanics before it leaves. Questions on fit or sizing? Call or text the shop and talk to the people who build them.
