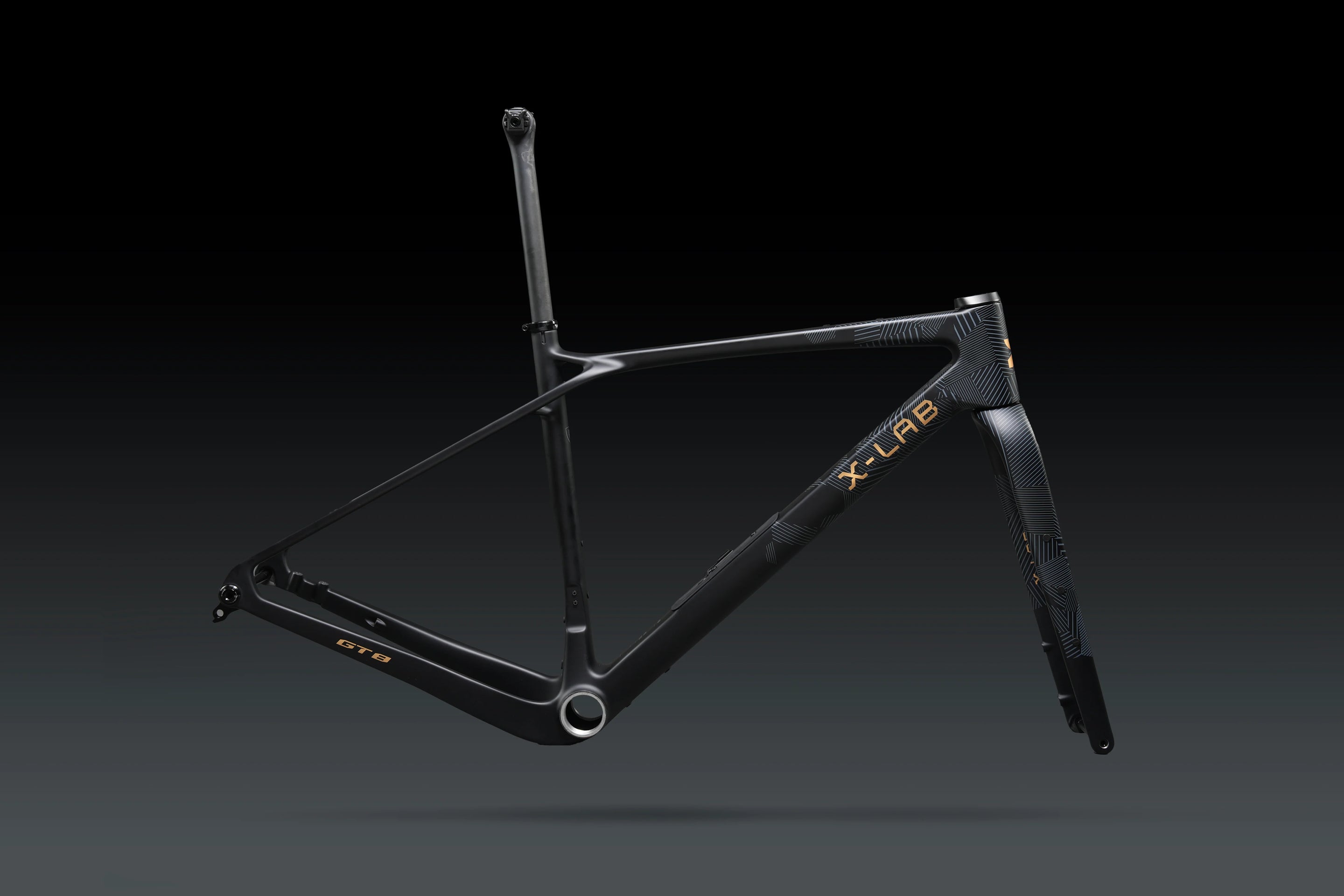

X-LAB GT8 Frameset

$1,999.00
Delivery
Color
Size

**Pre-Orders are generally fulfilled within 2-3 weeks of order. After order has been placed we will contact you with a more precise ETA**

The GT8 is X-LAB’s first gravel platform, built for riders who see every road as an invitation.

Designed for stability, control, and long-distance comfort, the GT8 transitions effortlessly from pavement to dirt, city streets to open trails.

With confident handling and durable carbon construction, it’s a gravel bike that encourages exploration without limits.

Wherever the road disappears, the GT8 keeps going.

For specific spec, geometry, and general information, please visit the GT8 product page here: https://xds.co/products/GT8/

Geometry

XS S M L XL XXL
Stack 519mm 540mm 565mm 584mm 607mm 631mm
Reach 370mm 379mm 384mm 392mm 399mm 408mm
Top Tube 506mm 525mm 547mm 566mm 585mm 605mm
Seat Tube 435mm 447mm 471mm 491mm 532mm 577mm
Head Tube 80mm 100mm 120mm 140mm 165mm 190mm
Head Angle 70° 70° 71° 71° 71° 71°
Seat Angle 76° 75° 74° 74° 73° 73°
Chainstay 435mm 435mm 435mm 435mm 435mm 435mm
Wheelbase 1020mm 1032mm 1031mm 1046mm 1061mm 1078mm
BB Drop 80mm 80mm 80mm 80mm 80mm 80mm
Standover 715mm 730mm 755mm 773mm 807mm 838mm

Key specs

  • Frame: XDS Carbon, Toray T-800, UDH compatible
  • Weight: 8.78 kg / 19.31 lbs (size M)
  • Max tire clearance: 55C
  • Weight limit: 242 lbs (110 kg) rider + gear
  • 1x or 2x drivetrain compatible
  • Lifetime frame & wheel warranty

Frameset buyers: ask us about a complete custom build — groupset, wheels, cockpit, professional assembly and fitting, all done in-house.

Every X-LAB ships from Free Lap Collective in Reno, Nevada — sized to you, professionally built, and safety-checked by our mechanics before it leaves. Questions on fit or sizing? Call or text the shop and talk to the people who build them.
