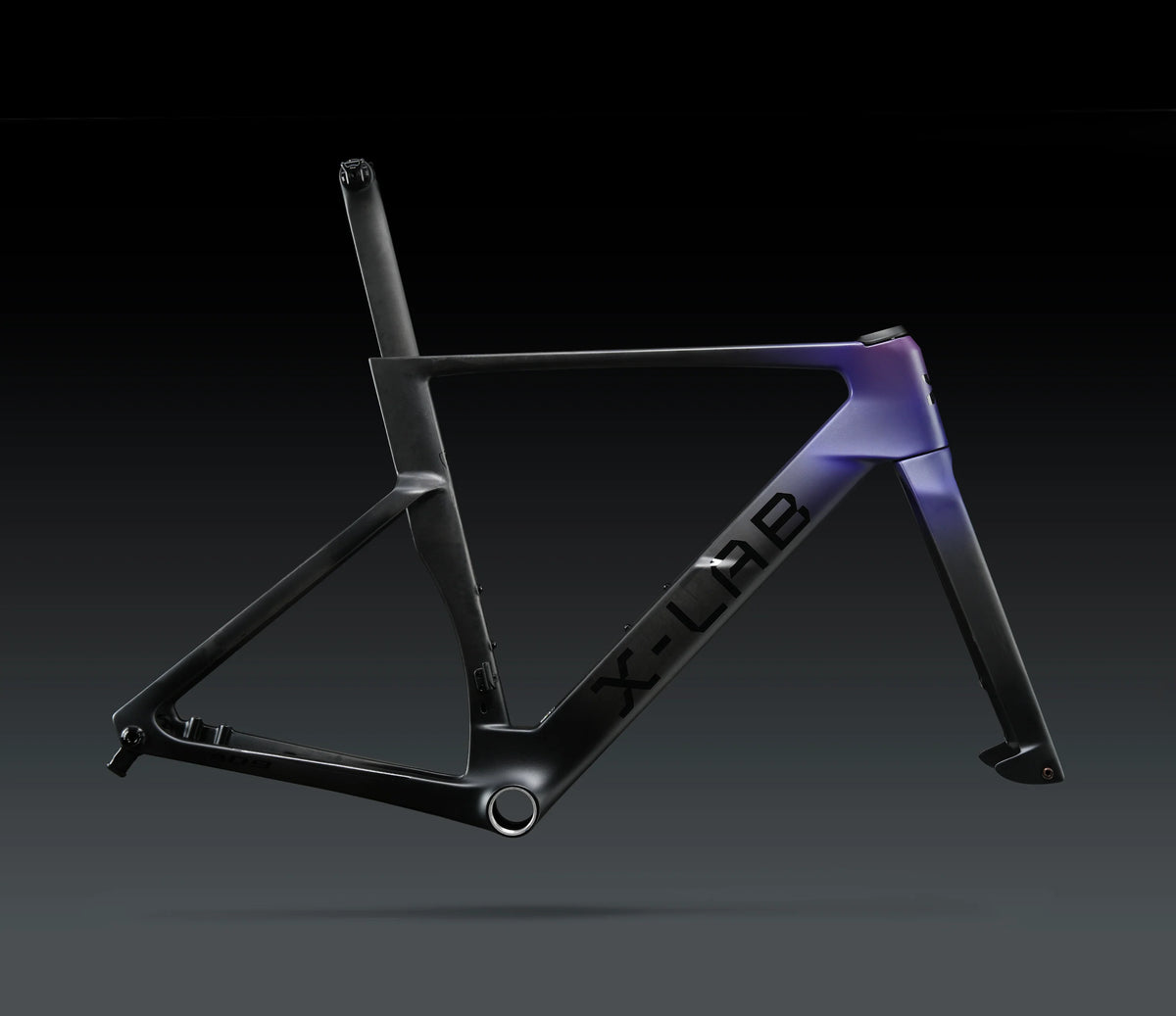

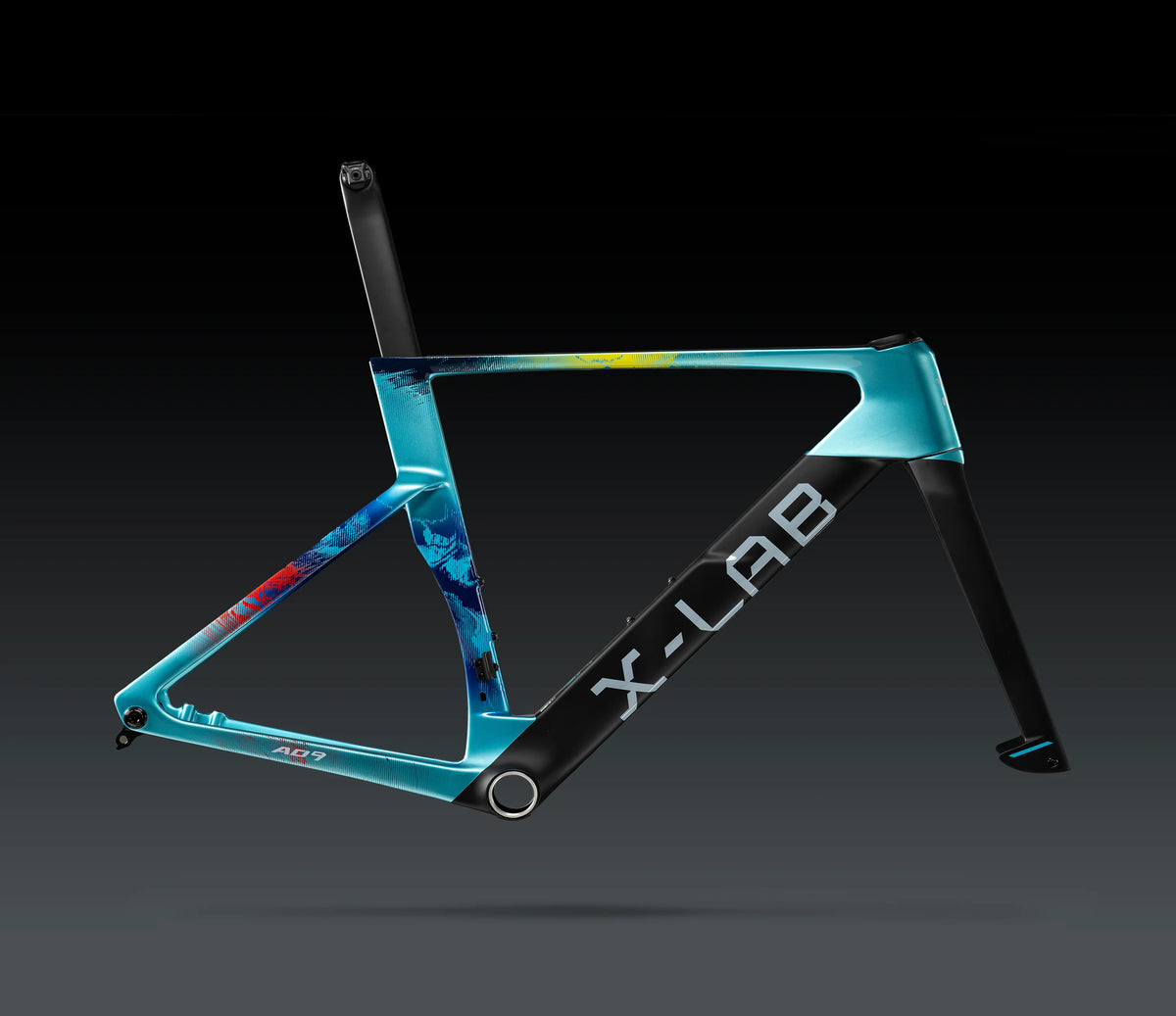

    • X-LAB AD9 Frameset

    $2,999.00
    Delivery
    Color
    Size

    **Pre-Orders are generally fulfilled within 2-3 weeks of order. After order has been placed we will contact you with a more precise ETA**

    The AD9 represents the pinnacle of X-LAB engineering. Designed in the wind tunnel and proven at the highest level of professional cycling, it is the official race machine of the XDS Astana WorldTour Team.

    Every tube profile, surface transition, and structural element has been refined to minimize drag and maximize speed.

    When the road opens up and the pace rises, the AD9 delivers what matters most: pure aerodynamic advantage, tested to the fullest by CFD and by wind tunnel.

    This is the fastest road bike in the X-LAB lineup.

    For specific spec information, please visit the AD9 product page here: https://xds.co/products/AD9/

    Geometry

    XS S M L XL
    Stack 505mm 520mm 534mm 553mm 575mm
    Reach 371mm 379mm 387mm 395mm 405mm
    Top Tube 504mm 523mm 540mm 559mm 579mm
    Seat Tube 470mm 495mm 515mm 540mm 565mm
    Head Tube 105mm 118mm 130mm 148mm 171mm
    Head Angle 71° 72° 73° 73° 73°
    Seat Angle 75° 75° 74° 74° 73°
    Chainstay 410mm 410mm 410mm 410mm 410mm
    Wheelbase 970mm 978mm 982mm 992mm 1007mm
    BB Drop 72mm 72mm 70mm 70mm 70mm
    Standover 753mm 774mm 792mm 811mm 834mm
    Trail 67mm 63mm 64mm 61mm 59mm

    Key specs

    • Frame: XDS Carbon, Toray T-1100 — as raced by the XDS Astana WorldTour team
    • Complete bike: 6.82 kg / 15.03 lbs (size L)
    • Fork: XDS Carbon T-1100, 100x12mm thru-axle
    • Max tire clearance: 32C
    • UDH derailleur hanger · compatible with most wired and wireless electronic groupsets
    • Weight limit: 220 lbs (100 kg)
    • Lifetime frame & wheel warranty

    Frameset buyers: ask us about a complete custom build — groupset, wheels, cockpit, professional assembly and fitting, all done in-house.

    Every X-LAB ships from Free Lap Collective in Reno, Nevada — sized to you, professionally built, and safety-checked by our mechanics before it leaves. Questions on fit or sizing? Call or text the shop and talk to the people who build them.
